Professional Hydraulic Sesame Seed Oil Press Machine with Engineer's Guide Installation

max capacity : 90 kg/h

condition : New

usage : sesame , cocoa butter, walnuts, almonds, and other high oil crops

type : Cold & Hot Pressing Machine

automatic grade : Manual

production capacity : 98%

place of origin : China

brand name : Kinetic

voltage : Manual

dimension(l*w*h) : 300*200*700mm

weight : 180KG-200KG

warranty : 1 Year

key selling points : Energy saving

oil type : Flax Seed Oil, Soybean Oil, Rap seed oil, Tea Seed Oil, Basil oil, SESAME OIL, Pinenut oil, Almond Oil, walnut oil, Peanut Oil, Coconut Oil

After-sales Service Provided : Engineers available to service machinery overseas, Video technical support, Online support

Name : hydraulic oil presser

Material : Carbon steel or stainless steel

Capacity : 90kg

Installation : Under our engineer's guide

Item : Cooking oil ,vegetable oil press machine

Application : Home use, oil plant

Oil Grade : Food grade oil

Raw material : Walnut, sesame, cocoa butter etc.

Function : Making Edible Oil

After Warranty Service : Video technical support, Online support

Local Service Location : None

Certification : CE ISO

Applicable Industries : Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Retail, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

Showroom Location : None

Marketing Type : Hot Product 2019

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : motor, Engine

Packaging Details : Plywood, international standard trade packing
Popular manual hydraulic sesame seed oil press machine/cocoa bean oil presser for sale

Price : CN¥15,895.88/sets 1-1 sets

Contact Now

Professional Hydraulic Sesame Seed Oil Press Machine with Engineer's Guide Installation

Product Description

The hydraulic oil press machine is our new and original product, it is suitable for cold pressing and hot pressing of anything containing oil,such as olives, sesame , flax seed, peanut kernel, Jasmine Oil,Pumpkin seeds, Walnut Kernel,Chili oil, rape seeds,etc. It saves more space than traditional oil press and can be operated easily and conveniently. What’s more, it is multi-functional.You deserve it.
1.manual type:

2.small electric:

3.large electric:

1. This machine is very suitable for family using and small scale oil factories. Which can press olive, sesame , cocoa beans,walnuts, almonds, and other high oil crops.\
2. After pressed, the oil is very pure with good smell, can be edible for people directly. The oil can reach the healthy standard.

Product Structure

Specification

Model	Style	Power	Capacity
AM0-50T	manual	Hand	50kg/day
AM0-80T	manual	Hand	50kg/day
AM0-100T	manual	Hand	50kg/day
AME0-80T	small electric	1.5KW	50kg/day
AME0-100T	small electric	2.0KW	50kg/day
6YZ-150	big electric	0.75KW	10kg/h
6YZ-180	big electric	1.5KW	20kg/h
6YZ-230	big electric	1.5KW	40kg/h
6YZ-260	big electric	1.5KW	50kg/h
6YZ-320	big electric	2.2KW	90kg/ h

Application

Application scope:
The hydraulic oil press machine is our new and original product, it is suitable for cold pressing and hot pressing of anything containing oil,such as olives, sesame, peanut kernel,walnut Kernel,Chili oil etc.It saves more space than traditional oil press and can be operated easily and conveniently. What’s more, it is multi-functional.

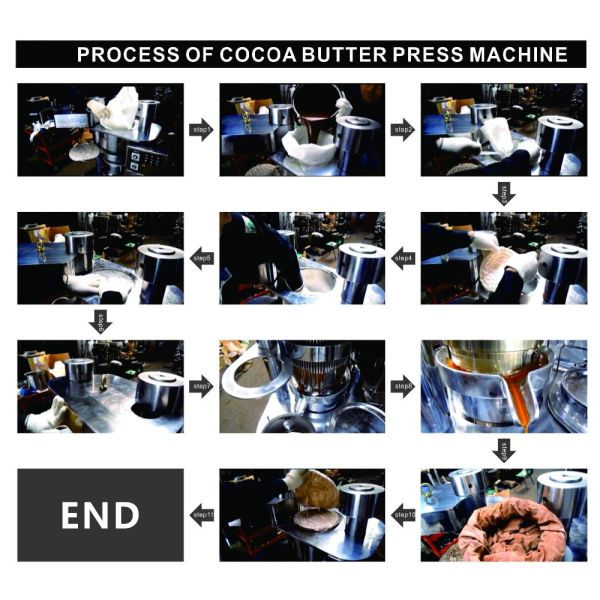

How to operate the hydraulic oil press machine?
Step 1: Before running, clean the oil tank, feed enough clean hydraulic oil, check every bolts if they are loose, check circuit if they connect well. Then pre-heating, 50-70℃ in summer and autumn, 70-90℃ in winter and spring. Finally run 1-2 minutes. When the oil changes thick in winter and spring, then run 5-10 minutes.
Step 2: Exhaust lampblack from the cooked oilseed, put it into the basket, then put the mat and separation board.
Step 3: Lift the hand shank of the manual valve, turn on to press. There must be a person when the main engine boosts. When reaching 55Mpa, it stops.
Step 4: When the pressure drops to 45MPa, the electric controlling system will turn on itself and the pressure will rise back.When there is no oil exuding, then finish the pressing.
Step 5: Turn off, press the hank shank downward to make the squeezing tank away 10mm. Then lift the hand shank and open the topplate.
Step 6: Turn on, oil cake rises to make the top plate tower above 5mm. Then turn off and take out separation board and mats and oil cake.
Step 7: Press the hand shank down, the plunger declines and start to press second time.

Packing & Delivery

Company Profile

Kinetic (Hubei) Energy Equipment Engineering Co., Ltd. is a professional and modern grain and oil machinery engineering equipment manufacturer integrating research, manufacturing and installation. We have obtained rich experience and practice in oil machine, sophisticated technology and equipment designs etc.

Certifications

FAQ

Q1: What is the Material?
A2: Carbon steel suitable for pressing.
Q2: When can I get the price?
A2: Within 24 hours, if urgent, please directly call us.
Q3: Whether the machine price can be more discount?
A3: In general, our MOQ is 1set with very reasonable price, but if large order, we also can apply to our manager to appropriately
give you a little discount.
Q4: How long will it take to receive my products?
A4: Generally, it will take about 5 days to make the machinery, 3-7 days to deliver it to
shipping port, and 10-45 days on sea transporting.
Q5: Is the machine suitable for different raw material ?
A5: Yes, but we recommend no more than 3 different types.

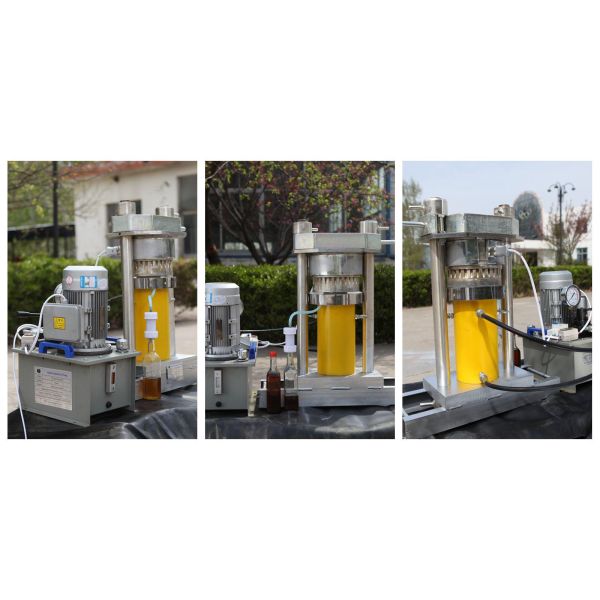

Professional Hydraulic Sesame Seed Oil Press Machine with Engineer's Guide Installation Images
