Small-Scale Groundnut Oil Refining Machine with 500Kg/day Capacity in Stainless Steel

max capacity : 600 kg/h

condition : New

usage : mini oil refinery plant

type : mini oil refinery plant

automatic grade : Automatic

production capacity : 500Kg/day

place of origin : Hunan, China

brand name : Kinetic

voltage : 380V/50HZ

dimension(l*w*h) : 1500*680*1400mm

weight : 140 KG

warranty : 1 Year

key selling points : Low Noise Level

oil type : Flax Seed Oil, Soybean Oil, Rap seed oil, Tea Seed Oil, Basil oil, SESAME OIL, Pinenut oil, sunflower seed oil, Almond Oil, walnut oil, Peanut Oil, Coconut Oil, OLIVE OIL, Palm Oil

After-sales Service Provided : Engineers available to service machinery overseas

Function : Degumming and bleaching

Application : Oil Production Line

Product name : mini oil refinery machine

Advantage : Energy Saving

Material : Stainless Steel

Name : mini oil refinery machine

Color : Stainless steel color

Price : CN¥19,364.08/units 1-999 units

Capacity : Large

Applicable Industries : Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Other

Showroom Location : None

Marketing Type : Other

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : motor

Packaging Details : International standard trade package, Plywood packing
homemade oil refinery/groundnut oil refining machine for sale

Port : Hong Kong

Supply Ability : 600 Set/Sets per Month

Contact Now

Small-Scale Groundnut Oil Refining Machine with 500Kg/day Capacity in Stainless Steel

Product Description

Description of oil refining machine:

This set of oil refining machine is used for cleaning crude oil.This small oil refinery machine is composed of Hydration system, fine filter decolorization systems, trans-mission systems, fluid delivery systems, transmission and lubrication systems, electrical control system, rack and other parts.

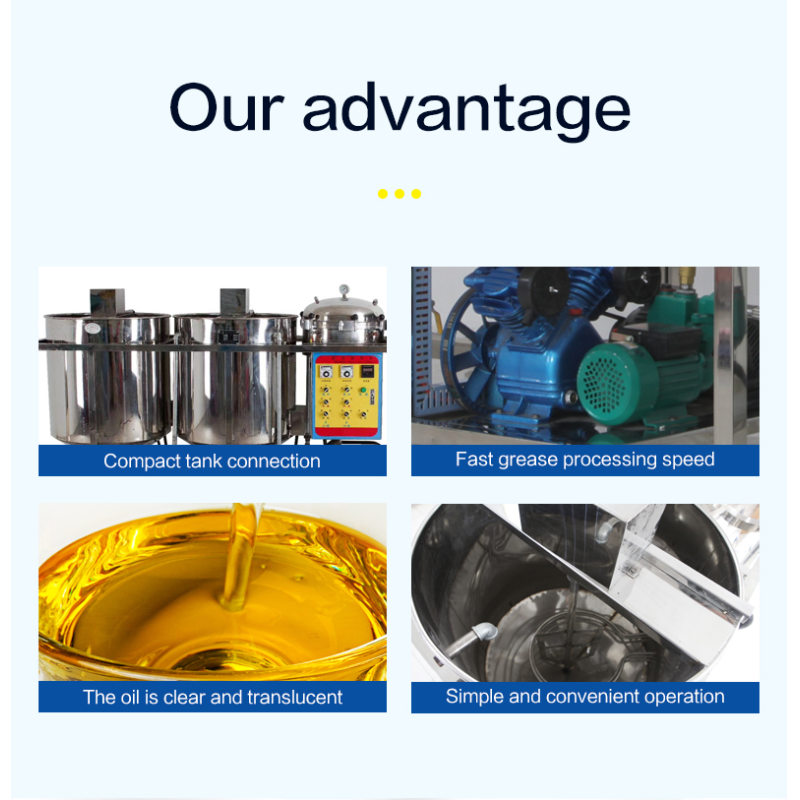

Our Advantages

Working Principle

Working principle of il refining machine:

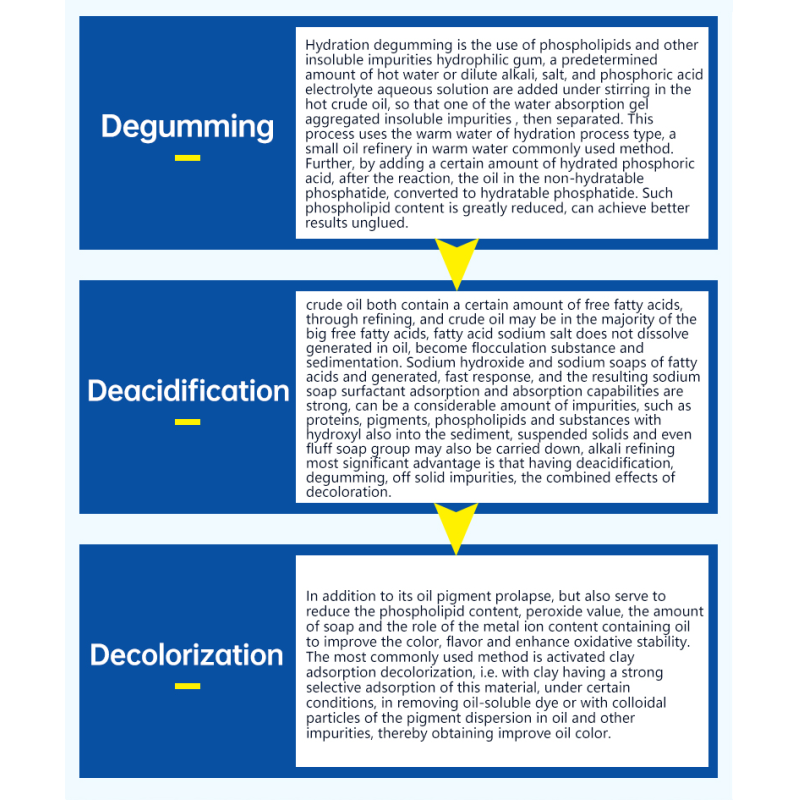

Detailed process of our small edible oil refinery machine:
Crude oil-→deguming and deacidification-→decoloring-→fine filtering-→final product oil-→process finished
Operation:
1.First step:It is to purify the oil and remove the waste in the oil first time.
2.Second step:It is to purify the oil and remove the waste again to make oil more clean.
3.Third step:It is to remove the bad smelling of the oil, so to make the oil better and no smelling.
4.Oil filter:It is to fil the oil to make purified oil arrive good quality oil, and can meet people edible need.

Application

Application of Small crude oil refinery equipment
Refining crude oil : soybean oil, mustard seed oil, cottonseed oil, sunflower seed oil, peanut oil, rice bran oil, safflower seed oil, corn germ oil, camellia seed oil, etc.

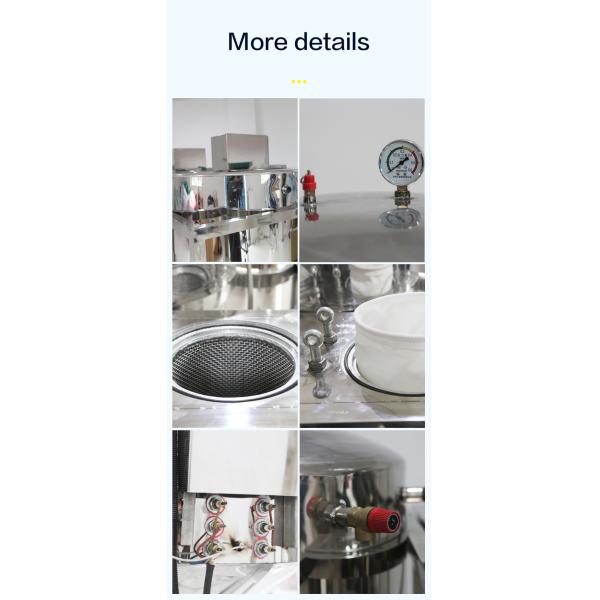

Product Structure

Structure of oil refining machine:
1.small edible oil refinery machine structure:
The machine is consist of hydration deguming&deacidification system, filter de-coloring, transmission system, oil liquid conveying system, transmission and lubrication system, electrical control system and machine frame.
2.hydration deguming & deacidification system of our small edible oil refinery machine:
This part is consist of mixer, deguming tank, gum outlet and transfer pipe.
3.filter de-coloring system of our small edible oil refinery machine:
This part is consist of oil inlet, a sealing cover, cover handle, fine filter bucket, oil collecting tank, filter cloth, and oil outlet.
4.transmission system of our small edible oil refinery machine:
This part is consist of speed control motor, motor controller, governor and power module.
5.electrical control system of our small edible oil refinery machine:
This part is consist of miniature circuit breaker, motor controller, power supply module, contactor, relay, potentiometer and knob.

Product Paramenters

Model	capacity(KG/D)	weight(KG)	packing size(MM)	Power(kw)
JLJ50D	500	140	15006801400	5
JLJ75D	2000	280	30008301700	15
JLJ75C	2500	350	39008301700	20

Packing & Delivery

Terms and Conditions:
1. Payment: T/T 30% advance-payment, 70% balance before shipment
2. Delivery Time: Within 7 days after receiving payment
3. Shipping Term: FOB, CFR, CIF or according to your request
4.Packing Details: wooden case
5.Delivery details: within 15 days after the payment
